MY-500 High speed wire EDM cut machine

MY series wire cut EDM machine tool is a high-precision servo wire cut machine .
The C-shaped structure design is adopted, the structure is stable and the service life is long.
The cut speed of the machine is 15 % higher than that of other brands
The cut accuracy and roughness are at the leading level in the industry.

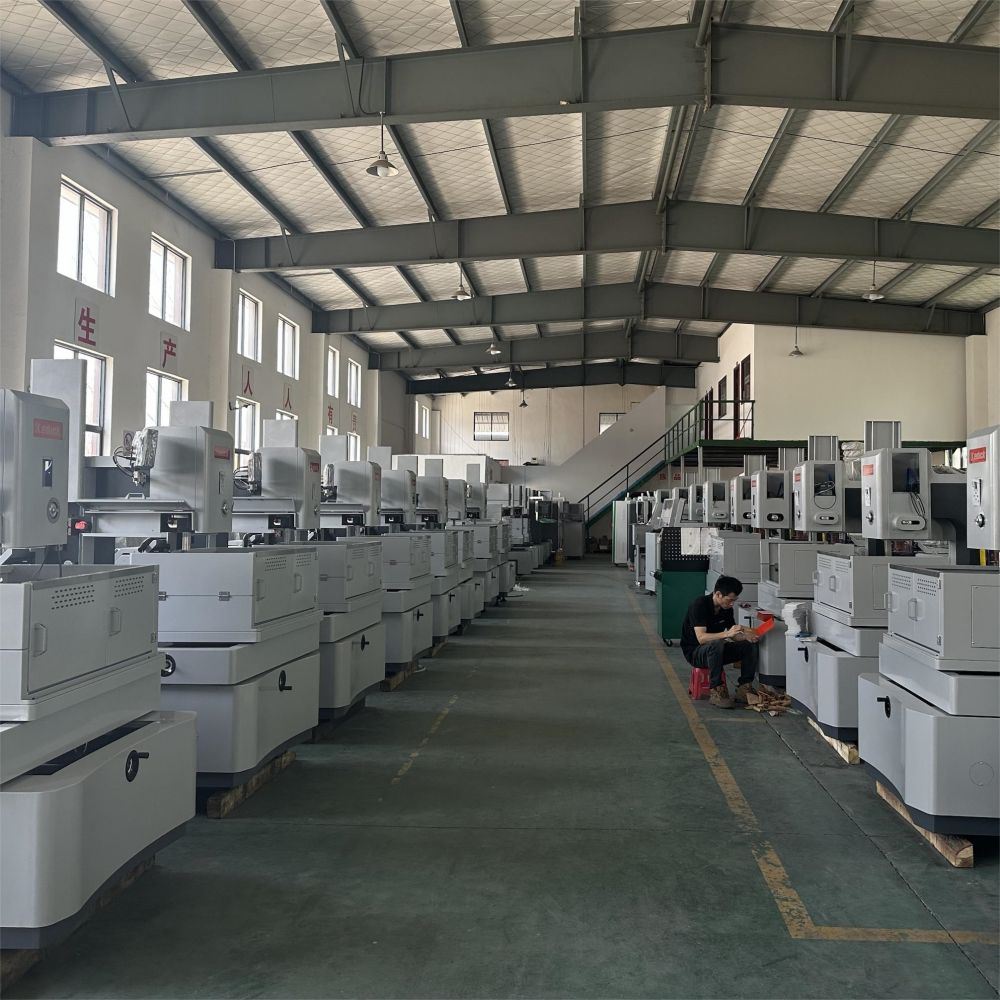

Production Workshop


Item	Unit	MY400	MY500

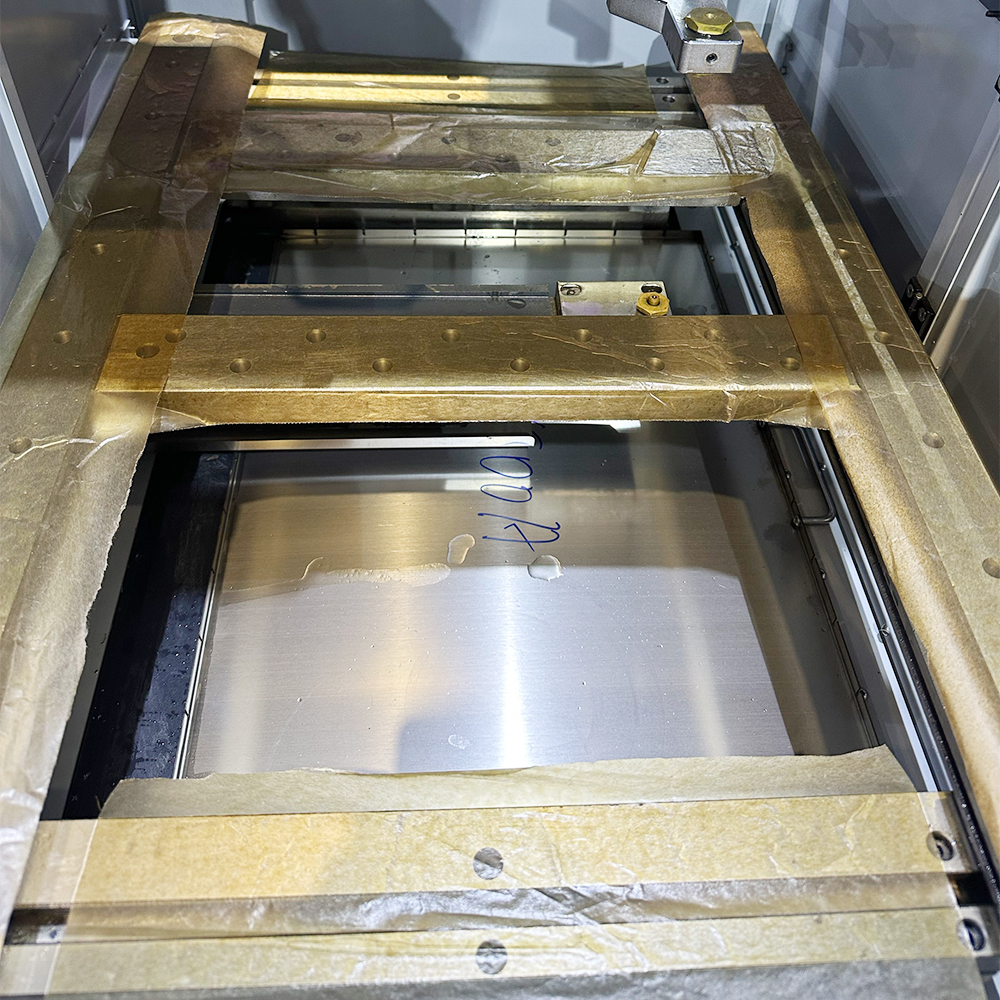

Worktable size	mm	*600460**	*720530**
*CNC axis travel(XY)**	mm	*400320**	*500400**
U/V travel	mm	32	32
Z travel	mm	250	250
Max. cutting workpiece thickness	mm	280	280
Max cutting taper		±6°/80mm	±6°/80mm
Max workpiece weight	kg	400	500
Molybdenum wire diameter	mm	φ0.18	φ0.18
Cutting accuracy	mm	≤±0.005Φ20mm H=30mm(multiple cutting)	≤±0.005Φ20mm H=30mm(multiple cutting)
Surface roughness	μm	Ra≤0.65	Ra≤0.65
Cutting efficiency	mm2/hr	8000~15000	8000~15000
Power consumption		≤3Kw 2-phase 220V	≤3Kw 2-phase220V
Machine dimension	mm	*180012001950*	*190013001950*
Cabinet size	mm	*8506801760*	*8506801760*
Tank size	mm	*1030660860*	*1030660860*
Machine weight	kg	≈1600	≈1800

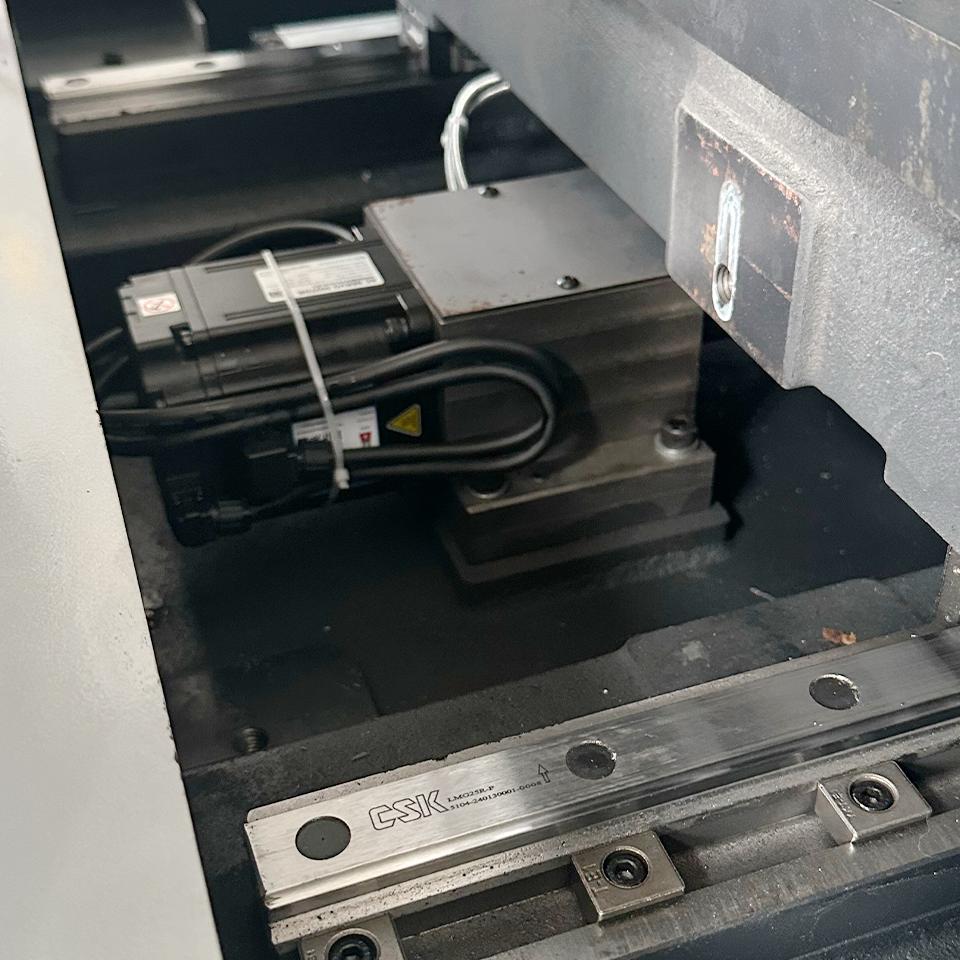

Motor Controller		XY servo motor UV stepper motor	XY servo motor UV stepper motor
Z axis lift type		Auto-lift	Auto-lift
X/Y axis type		Auto-manual	Auto-manual
Controlled axis		4-axises	4-axises
Lead screw/Guide type		Ball screw/Linear guide （made in Taiwan/ Germany）	Ball screw/Linear guide （made in Taiwan/ Germany）
Control system		Autocut	Autocut
Tanker	L	150	150

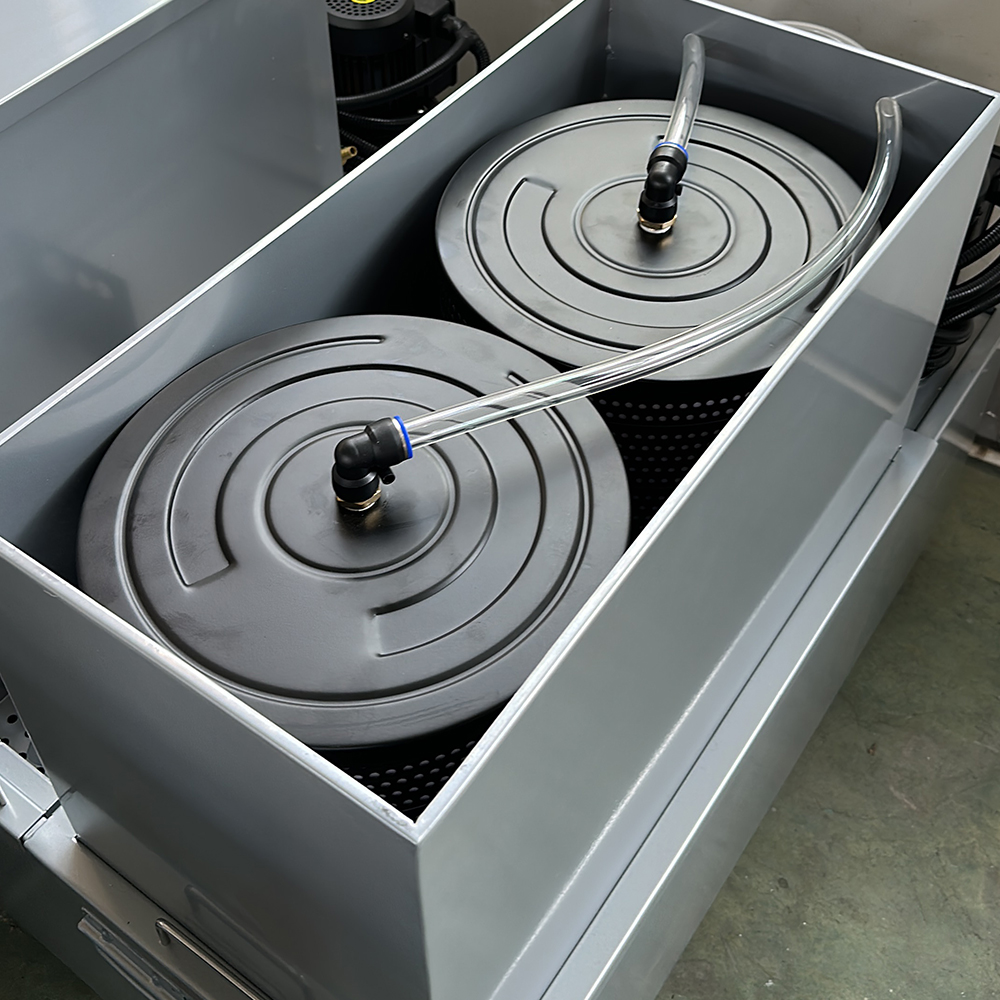

Filter type		3nd filtration	3nd filtration
Min. Moving unit	mm	0.001	0.001
Molybdenum wire tensioning device		√	√
Table waterproof cover		√	√
DRO		√	√
Aluminum Cutting Device		√	√
