Fast wire cut EDM machine DK7732(MY-400G)

DK7732(MY-400G) WIRE EDM CUT
X:400mm X Y:320mm
U:32mm X V32mm
Servo motor drive
Linear guide rail, double nut ball screw

Production Workshop

WIRE CUT EDM

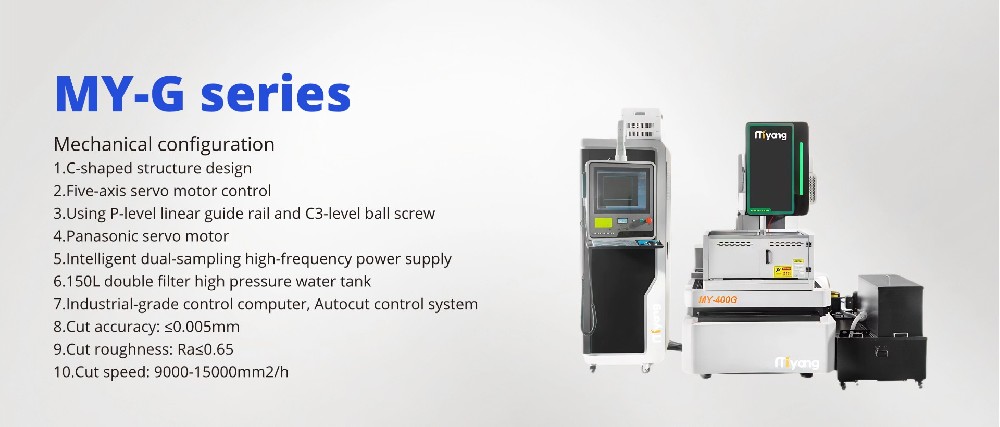

MY-G series is a high-precision wire cut EDM machine .Equipped with an industrial-grade computer and using an Autocut control system.

It is convenient for the operator to use. After the CAD drawing file is transmitted to our system, the system will automatically generate a G code.

At the same time, the system is equipped with an intelligent parameter database, which only needs to set the material height,

and the system automatically matches the cutting parameters.

Item	MY-400G
Worktable size(mm)	600*460
CNC axis travel(X×Y)	400*320
Max. cutting workpiece thickness(mm)	280
Max workpiece weight(kg)	300
X、Y、U、V Control motor	X/Y Japan Panasonic Servo Motor U/V Hybrid drive Motor
X、Y、U、V Double nut screw,linear guide rail	Japan THK
Z-axis control method	Electric lift(One click back to the origin)
Max cutting taper	±10°/80mm(Optional ±15°/80mm)
Wire electrode diameter(mm)	0.1~0.2mm(Standard φ0.18)
Cutting accuracy(mm)	≤±0.004 Φ20mm H=40mm (multiple cutting)
Positioning accuracy	≤±0.003mm (L=500mm)
Surface roughness(μm)	Ra≤0.65
Cutting efficiency(mm²/h)	9000-15000
Working Voltage(V)	Two-phase 220v
Power consumption	≤3Kw
Tank capacity(L)	150L
Weight(kg)	≈1700
Controlled axis	5-axises
Control system	Autocut
Machine dimension(mm)	≈1750x1100x1950
Control cabinet size（mm）	≈1200x650x1850
Tank size（mm）	≈930x550x700
Filter type	3nd filtration
Molybdenum wire tensioning device	√
Table waterproof cover	√
Aluminum Cutting Device	√
