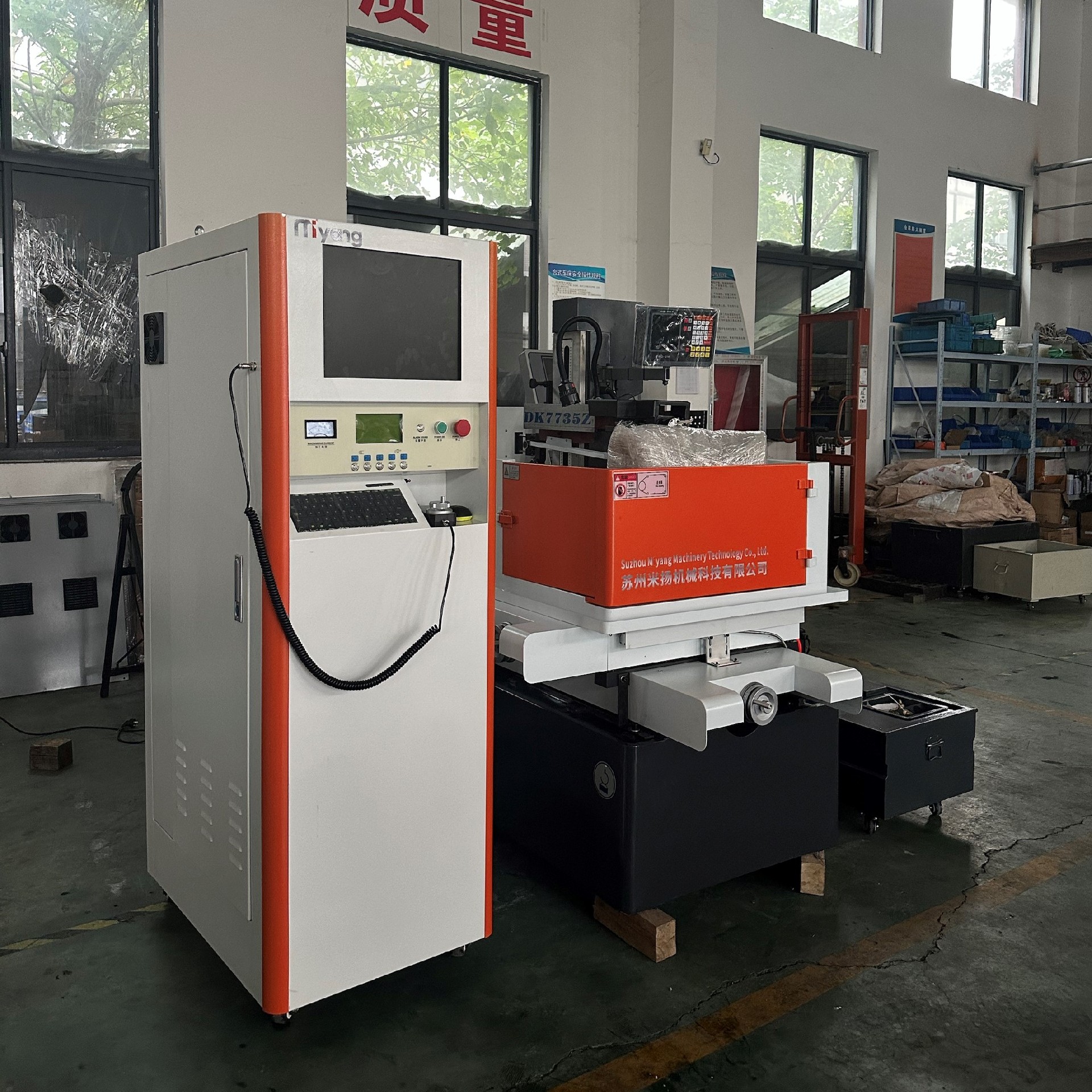

DK7745 Economical 5 Axis Fast Cnc Wire Cut Edm Machine

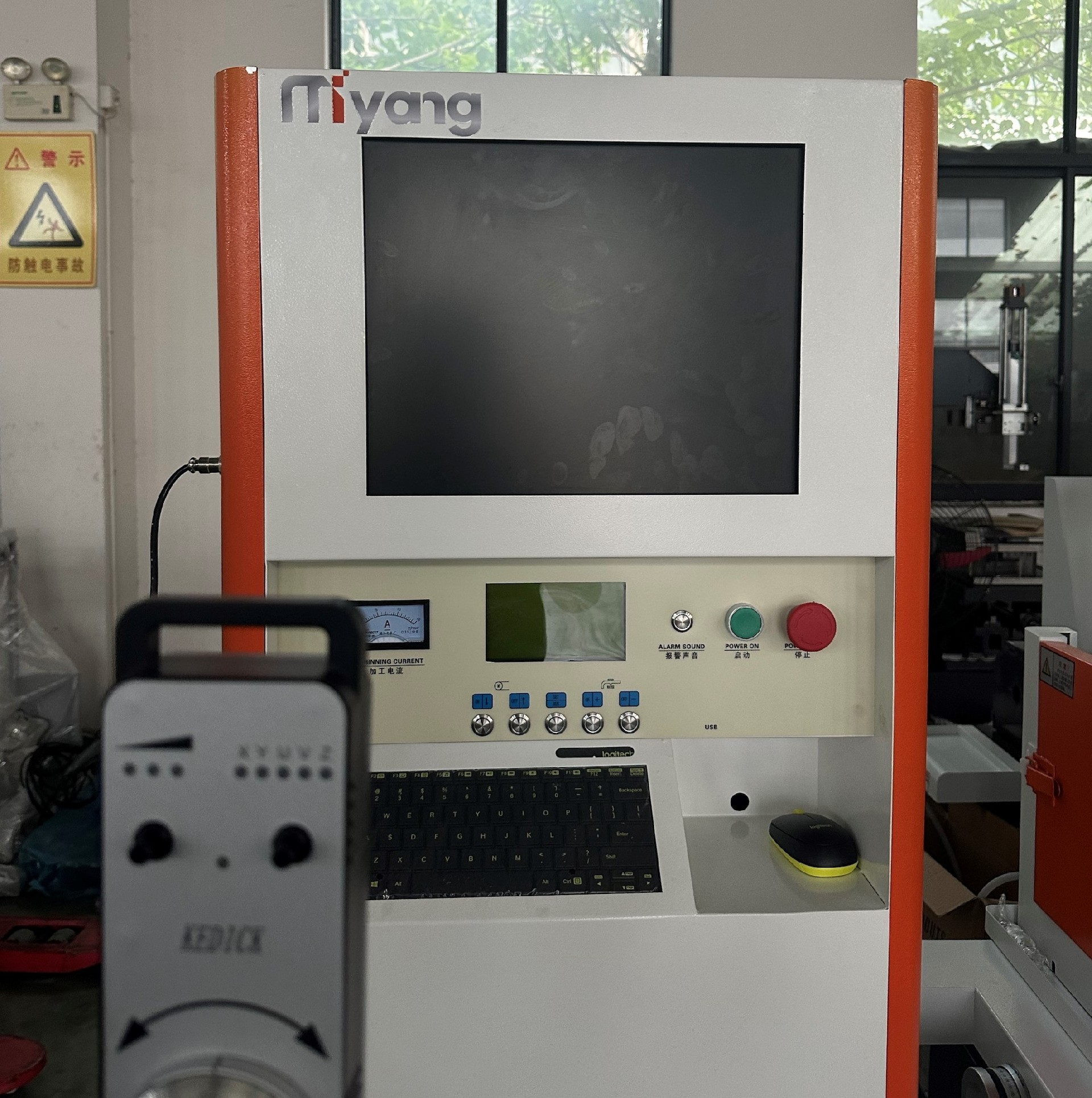

1. Using the X8 control software of the mainstream professional Fast wire cutting EDM machine in the market, the operation is simple,
only the graphics file needs to be transferred to the system, and the system automatically generates the code.

2.Miyang Machinery independently developed an intelligent wire cutting EDM machine database.Only need to set the thickness of the cutting material,
and the system automatically matches the most suitable cutting parameters.

3. Industrial-grade integrated system.The response speed is fast and the failure rate is reduced.

4. Wire cut EDM machine use advanced pulse power supply and electroless power supply technology
on the market to ensure cutting roughness and improve cutting efficiency.

5. The wire cutting machine adopts an F-shaped structure design, and the fuselage castings are cast with resin sand,
and two high-temperature heat treatments are carried out to remove internal stress and prevent deformation.

6. Equipped with C3 and P-grade precision ball screws and linear guides.The cutting accuracy of the Fast wire cutting machine is guaranteed.

7. XY is equipped with an optional servo motor.

8.Wire cutting EDM machine come standard with multiple cutting functions

Production Workshop

DK7745(DK7740) Economical 5 Axis Fast Cnc Wire Cut Edm Machine Parameter Table

Item	Unit	DK7735 DK7735-S	DK7745 DK7745-S	DK7745F DK7745F-S	DK7750 DK7750-S
Worktable size	mm	610*470	710*570	750*570	800*650
CNC axis travel(X×Y)	mm	450*350	550*450	650*450	630*500
U/V travel	mm	30	30	30	30
Max. cutting workpiece thickness	mm	400	450	450	500
Max cutting taper		±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm
Max workpiece weight	kg	400	500	500	700
Molybdenum wire diameter	mm	φ0.18	φ0.18	φ0.18	φ0.18
Cutting accuracy	mm	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)
Surface roughness	μm	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)
Cutting efficiency	mm2/hr	8000-15000	8000-15000	8000-15000	8000-15000
Power consumption		≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V
Machine dimension	mm	155012001700	180014801700	180016201700	210017601900
Machine weight	kg	≈1200	≈1400	≈1400	≈1700
Motor Controller		Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor
Z axis lift type		Auto-lift	Auto-lift	Auto-lift	Auto-lift
Controlled axis		4-axises	4-axises	4-axises	4-axises
Guide type		Linear guide	Linear guide	Linear guide	Linear guide
Control system		Autocut	Autocut	Autocut	Autocut
Tanker	L	100	100	100	100
Filter type		2nd filtration	2nd filtration	2nd filtration	2nd filtration
Min. Moving unit	mm	0.001	0.001	0.001	0.001
Molybdenum wire tensioning device		√	√	√	√
Table waterproof cover		√	√	√	√
DRO		√	√	√	√

FAQ

Question: Are you a manufacturer or a distributor?

Answer: We are manufacturers. Welcome to visit our factory.

Question: How to choose the machine I want?

Answer: First of all, please match the worktable stroke and cutting thickness according to the size of the workpiece to find the appropriate model.

Secondly, please check whether the accuracy and roughness meet your requirements;Our MY-G series machines have higher precision and better surface finish.

Question: The voltage in our country is three-phase 220V (or single-phase 220V, or other voltages), and the voltage of the machine
is three-phase 380V. Can you change the voltage?

Answer: Yes. Please tell me the voltage you need and we will change it.

Question: If I purchase your machine, how can I obtain technical support?

Answer: We have detailed teaching videos. Even beginners can operate by watching the videos. Please search "Miyang Machine" on
Facebook. Watch more videos!

Question: How is the after-sales service?

Answer: Damaged parts will be replaced free of charge during the warranty period. After the warranty period, they will be replaced
at cost price. If you have any questions, we will quickly provide you with solutions by shooting videos or other means
