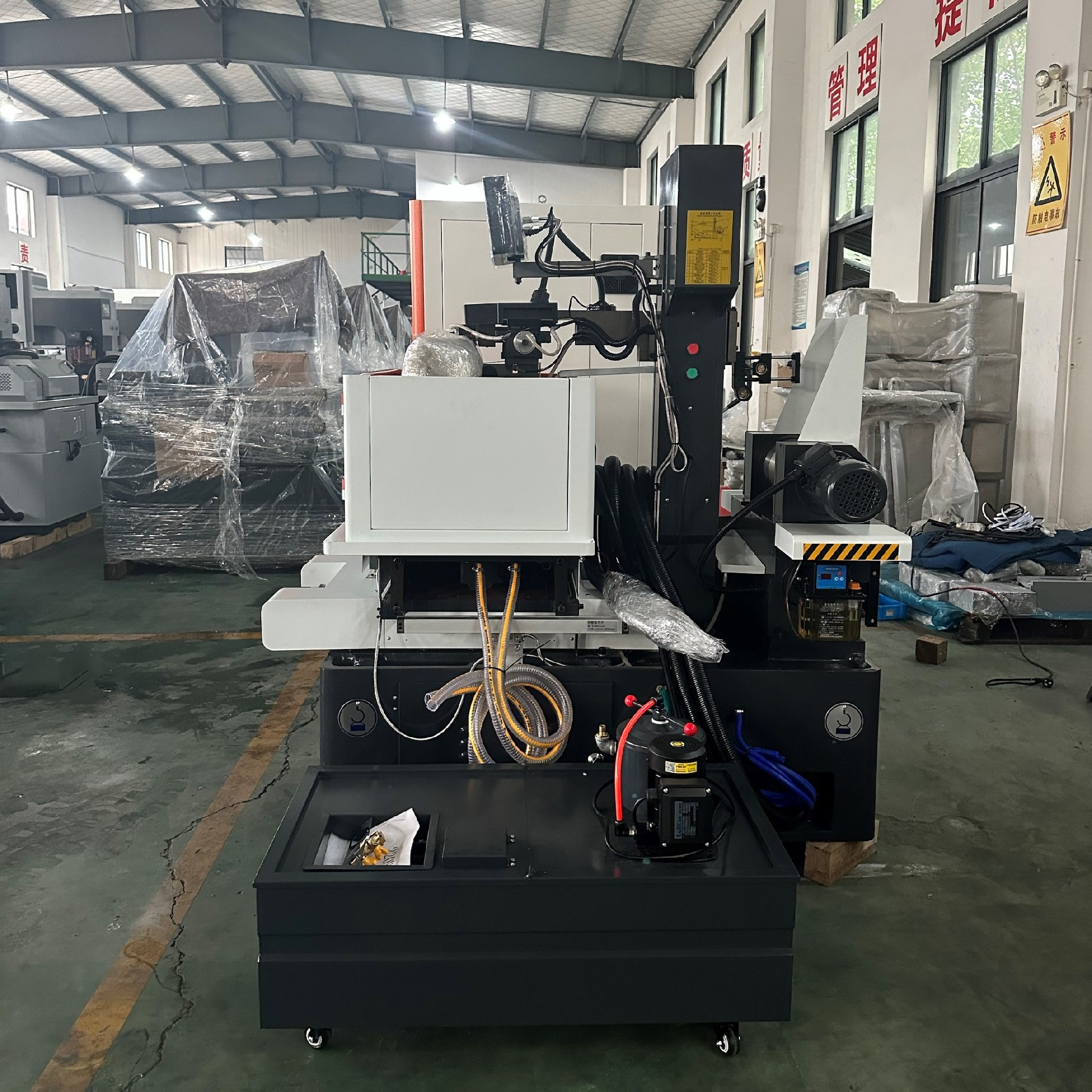

Dk7745 Cnc Fast Wire Cut Edm Machine

Suzhou Miyang Machinery Technology Co., Ltd.

Produces a full range of DK7745 CNC EDM wire cutting machines, using high-precision linear guides

and P3-level high-precision ball screws.

The product quality is high, the product models are complete, the machine has a long service life, high cutting accuracy and fast nachining efficiency.

The specifications of EDM wire machine can be customized according to customer needs, such as non-standard models DK7732(35)F DK7740 (45) F, DK7750(55) F,

DK7763F, DK7780F, DK77100F, DK77120F

and even larger models.Miyang also produces ±30° and ±45° four-axis linkage pendulum large taper machines and medium-speed wire EDM machine .

The following are the main parameters of the DK77 series machines.

Production Workshop

Cnc Fast Wire Cut Edm Machine

1.The X/Y axis adopts linear guide rail.
2.The X/Y axis adopts precision ball screw.
3.With its own intelligent database, you only need to set the cutting height of the material,

and the system automatically matches the best quality cutting parameters.
4.X/Y/U/V adopts a large inertia stepper motor with large torque.
5.The Z-axis uses electric lifting.
6.The mechanical castings are precision cast with resin sand,

and they are returned to the furnace twice after a new process.

Removing the internal stress of mechanical castings ensures that the machine will not deform for a long time.
7.Certification:CE

Item	Unit	DK7725 DK7725-S	DK7735 DK7735-S	DK7745 DK7745-S	DK7745F DK7745F-S	DK7750 DK7750-S	DK7750F DK7750F-S	DK7763 DK7763-S
Worktable size	mm	480*300	610*470	710*570	750*570	800*650	950*650	950*750
CNC axis travel(X×Y)	mm	320*250	450*350	550*450	650*450	630*500	800*500	800*630
U/V travel	mm	30	30	30	30	30	30	30
Max. cutting workpiece thickness	mm	250	400	450	450	500	500	600
Max cutting taper		±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm
Max workpiece weight	kg	250	400	500	500	700	700	1200
Molybdenum wire diameter	mm	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18
Cutting accuracy	mm	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)
Surface roughness	μm	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)
Cutting efficiency	mm2/hr	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000
Power consumption		≤2Kw AC 3-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V
Machine dimension	mm	142011001200	155012001700	180014801700	180016201700	210017601900	210019001900	225022501950
Machine weight	kg	≈900	≈1200	≈1400	≈1400	≈1700	≈1700	≈1900
Motor Controller		Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor
Z axis lift type		Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift
Controlled axis		4-axises	4-axises	4-axises	4-axises	4-axises	4-axises	4-axises
Guide type		Linear guide	Linear guide	Linear guide	Linear guide	Linear guide	Linear guide	Linear guide
Control system		Autocut	Autocut	Autocut	Autocut	Autocut	Autocut	Autocut
Tanker	L	100	100	100	100	100	100	100
Filter type		2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration
Min. Moving unit	mm	0.001	0.001	0.001	0.001	0.001	0.001	0.001
Molybdenum wire tensioning device		√	√	√	√	√	√	√
Table waterproof cover		√	√	√	√	√	√	√
DRO		√	√	√	√	√	√	√

FAQ

Question: Are you a manufacturer or a distributor?

Answer: We are manufacturers. Welcome to visit our factory.

Question: How to choose the machine I want?

Answer: First of all, please match the worktable stroke and cutting thickness according to the size of the workpiece to find the appropriate model.

Secondly, please check whether the accuracy and roughness meet your requirements;Our MY-G series machines have higher precision and better surface finish.

Question: The voltage in our country is three-phase 220V (or single-phase 220V, or other voltages), and the voltage of the machine
is three-phase 380V. Can you change the voltage?

Answer: Yes. Please tell me the voltage you need and we will change it.

Question: If I purchase your machine, how can I obtain technical support?

Answer: We have detailed teaching videos. Even beginners can operate by watching the videos. Please search "Miyang Machine" on
Facebook. Watch more videos!

Question: How is the after-sales service?

Answer: Damaged parts will be replaced free of charge during the warranty period. After the warranty period, they will be replaced
at cost price. If you have any questions, we will quickly provide you with solutions by shooting videos or other means
