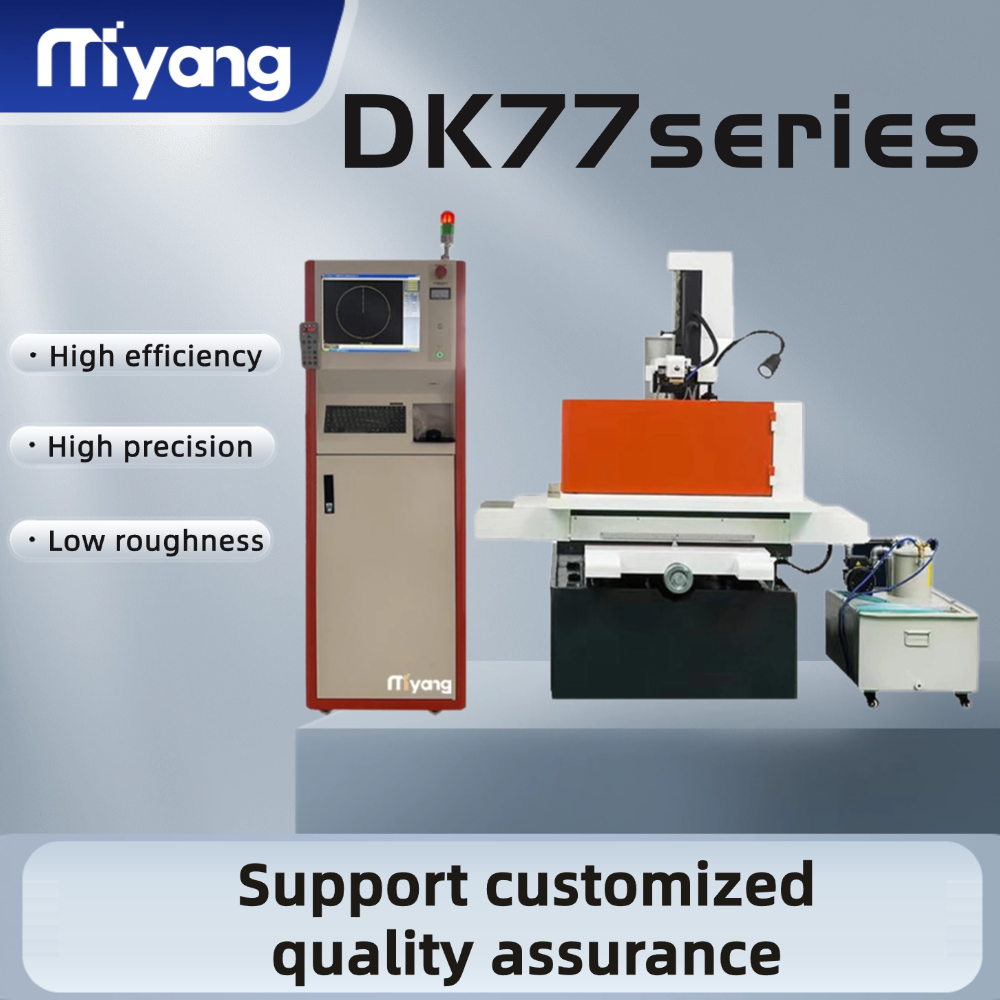

DK7735(DK7745) wire EDM cut machine

1. X:450mmx350mm Standard maximum cutting taper: ±6°/80mm;(±15°,±30°,±45° Is optional)

2. Accuracy ≤0.01mm

3. The best surface roughness ≤Ra2.5µm (single cutting), Ra1.2µm (multiple cutting);

4. Molybdenum wire diameter: 0.1-0.2mm;

5. Maximum. Cutting speed≥150mm2/min;

6. Voltage: 2-phase 220V (3-phase 380v, 3-phase 220v or other voltages can be customized), power: 2KW;

7. Working fluid: water-based cutting fluid.

8. The X/Y axis servo motor is optional.

Production Workshop

Fast Wire Edm Machine advantage

1. Deep technical accumulation and continuous R&D innovationCore technical team:

We have a R&D team composed of senior engineers and application experts.

We have an average of more than 15 years of technical experience in the field of wire cutting EDM machine

and we have a deep understanding of the processing pain points of different industries.

2. Excellent product performance and reliable processing qualityHigh precision and high finish:

Our machine tools use professional molybdenum wire EDM cutting machine servo system, high rigidity mechanical structure

(such as high-quality cast iron,

precision linear guide rail) to ensure long-term processing of high precision (accuracy up to ±0.005mm) and excellent surface finish.

Fast Wire Edm Machine Parameter Table

Item	Unit	DK7725 DK7725-S	DK7735 DK7735-S	DK7745 DK7745-S
Worktable size	mm	480*300	610*470	710*570
CNC axis travel(X×Y)	mm	320*250	450*350	550*450
U/V travel	mm	30	30	30
Max. cutting workpiece thickness	mm	250	400	450
Max cutting taper		±6°/80mm	±6°/80mm	±6°/80mm
Max workpiece weight	kg	250	400	500
Molybdenum wire diameter	mm	φ0.18	φ0.18	φ0.18
Cutting accuracy	mm	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)
Surface roughness	μm	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)
Cutting efficiency	mm2/hr	8000-15000	8000-15000	8000-15000
Power consumption		≤2Kw AC 3-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V
Machine dimension	mm	142011001200	155012001700	180014801700
Machine weight	kg	≈900	≈1200	≈1400
Motor Controller		Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor
Z axis lift type		Auto-lift	Auto-lift	Auto-lift
Controlled axis		4-axises	4-axises	4-axises
Guide type		Linear guide	Linear guide	Linear guide
Control system		Autocut	Autocut	Autocut
Tanker	L	100	100	100
Filter type		2nd filtration	2nd filtration	2nd filtration
Min. Moving unit	mm	0.001	0.001	0.001
Molybdenum wire tensioning device		√	√	√
Table waterproof cover		√	√	√
DRO		√	√	√

FAQ

Question: Are you a manufacturer or a distributor?

Answer: We are manufacturers. Welcome to visit our factory.

Question: How to choose the machine I want?

Answer: First of all, please match the worktable stroke and cutting thickness according to the size of the workpiece to find the appropriate model.

Secondly, please check whether the accuracy and roughness meet your requirements;Our MY-G series machines have higher precision and better surface finish.

Question: The voltage in our country is three-phase 220V (or single-phase 220V, or other voltages), and the voltage of the machine
is three-phase 380V. Can you change the voltage?

Answer: Yes. Please tell me the voltage you need and we will change it.

Question: If I purchase your machine, how can I obtain technical support?

Answer: We have detailed teaching videos. Even beginners can operate by watching the videos. Please search "Miyang Machine" on
Facebook. Watch more videos!

Question: How is the after-sales service?

Answer: Damaged parts will be replaced free of charge during the warranty period. After the warranty period, they will be replaced
at cost price. If you have any questions, we will quickly provide you with solutions by shooting videos or other means
