Low-cost sales of China wire cut EDM machine

Suzhou Miyang Machinery Technology Co., Ltd.
specializes in wire cutting EDM machine for production .
The company produces DK7735, DK7745, DK7750, DK7763, DK7780, DK77100 and other types of Wirecut EDM machines.
At the same time, we accept customer customization, such as special High speed wire cutting EDM machine size.
Suzhou Miyang Machinery Technology Co., Ltd. has 15 years of production and sales experience in China.
Have a complete production, R&D and after-sales service team.In terms of the export of Fast wire cutting EDM machine ,
we have a set of familiar processes.We have accumulated a lot of experience in quality, delivery and service.

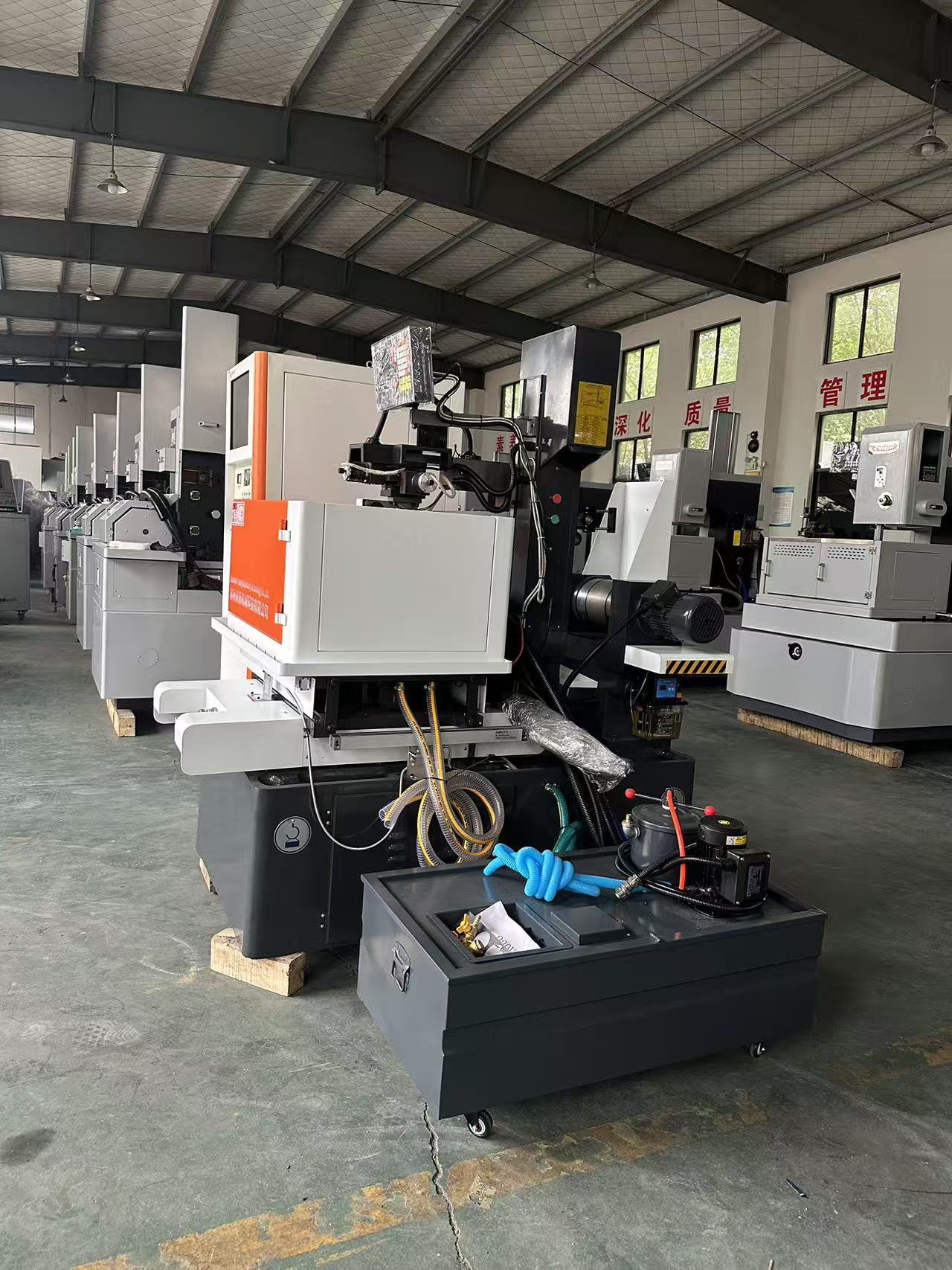

Production Workshop

High Precision CNC Fast Wire-Cut EDM Machine



Item	Unit	DK7735 DK7735-S	DK7745 DK7745-S	DK7745F DK7745F-S	DK7750 DK7750-S	DK7750F DK7750F-S	DK7763 DK7763-S	DK7763F DK7763F-S
Worktable size	mm	610*470	710*570	750*570	800*650	950*650	950*750	1150*750
CNC axis travel(X×Y)	mm	450*350	550*450	650*450	630*500	800*500	800*630	1000*630
U/V travel	mm	30	30	30	30	30	30	30
Max. cutting workpiece thickness	mm	400	450	450	500	500	600	600
Max cutting taper		±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm
Max workpiece weight	kg	400	500	500	700	700	1200	1200
Molybdenum wire diameter	mm	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18
Cutting accuracy	mm	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)
Surface roughness	μm	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)
Cutting efficiency	mm2/hr	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000
Power consumption		≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V
Machine dimension	mm	155012001700	180014801700	180016201700	210017601900	210019001900	225022501950	225024501950
Machine weight	kg	≈1200	≈1400	≈1400	≈1700	≈1700	≈1900	≈2200
Motor Controller		Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor
Z axis lift type		Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift
Controlled axis		4-axises	4-axises	4-axises	4-axises	4-axises	4-axises	4-axises
Guide type		Linear guide	Linear guide	Linear guide	Linear guide	Linear guide	Linear guide	Linear guide
Control system		Autocut	Autocut	Autocut	Autocut	Autocut	Autocut	Autocut
Tanker	L	100	100	100	100	100	100	100
Filter type		2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration
Min. Moving unit	mm	0.001	0.001	0.001	0.001	0.001	0.001	0.001
Molybdenum wire tensioning device		√	√	√	√	√	√	√
Table waterproof cover		√	√	√	√	√	√	√
DRO		√	√	√	√	√	√	√

Item

Unit

DK7780

DK7780-S

DK7780F

DK7780F-S

DK77100

DK77100-S

DK77100F

DK77100F-S

DK77120F

DK77120F-S

Worktable size

1150*950

1340*950

1340*1140

1540*1140

1750*1320

CNC axis travel(X×Y)

1000*800

1200*800

1200*1000

1400*1000

1600*1200

U/V travel

Max. cutting workpiece thickness

800

Max cutting taper

±6°/80mm

Max workpiece weight

1800

2500

3000

Wire electrode diameter

φ0.18

Cutting accuracy

≤0.01(φ20mm,H=40mm)

Surface roughness

μm

Ra1.2~2.0(Multiple cutting)

Cutting efficiency

mm2/hr

8000-15000

Power consumption

≤2Kw AC2-phase 220V

≤2Kw AC 2-phase 220V

≤2Kw AC2-phase 220V

Machine dimension

2900*2800*2300

2900*3000*2300

3300*3270*2300

3300*3470*2300

3840*3980*2300

Machine weight

≈3500

≈3800

≈5000

≈5500

≈6500

Motor Controller

Stepper motor/

Servo motor

Stepper motor/

Servo motor

Stepper motor/

Servo motor

Stepper motor/

Servo motor

Stepper motor/

Servo motor

Z axis lift type

Auto-lift

Controlled axis

4-axises

Lead screw/Guide type

Ball screw/Linear guide

（made in China）

Ball screw/Linear guide

（made in China）

Ball screw/Linear guide

（made in China）

Ball screw/Linear guide

（made in China）

Ball screw/Linear guide

（made in China）

Control system

Autocut

Tanker

100

Filter type

2nd filtration

Min. Moving unit

0.001

Molybdenum wire tensioning device

√

Table waterproof cover

√

DRO

√

Fast wire EDM cut machine FAQ

Question: Are you a manufacturer or a distributor?

Answer: We are manufacturers. Welcome to visit our factory.

Question: How to choose the machine I want?

Answer: First of all, please match the worktable stroke and cutting thickness according to the size of the workpiece to find the appropriate model.

Secondly, please check whether the accuracy and roughness meet your requirements;Our MY-G series machines have higher precision and better surface finish.

Question: The voltage in our country is three-phase 220V (or single-phase 220V, or other voltages), and the voltage of the machine
is three-phase 380V. Can you change the voltage?

Answer: Yes. Please tell me the voltage you need and we will change it.

Question: If I purchase your machine, how can I obtain technical support?

Answer: We have detailed teaching videos. Even beginners can operate by watching the videos. Please search "Miyang Machine" on
Facebook. Watch more videos!

Question: How is the after-sales service?

Answer: Damaged parts will be replaced free of charge during the warranty period. After the warranty period, they will be replaced
at cost price. If you have any questions, we will quickly provide you with solutions by shooting videos or other means
