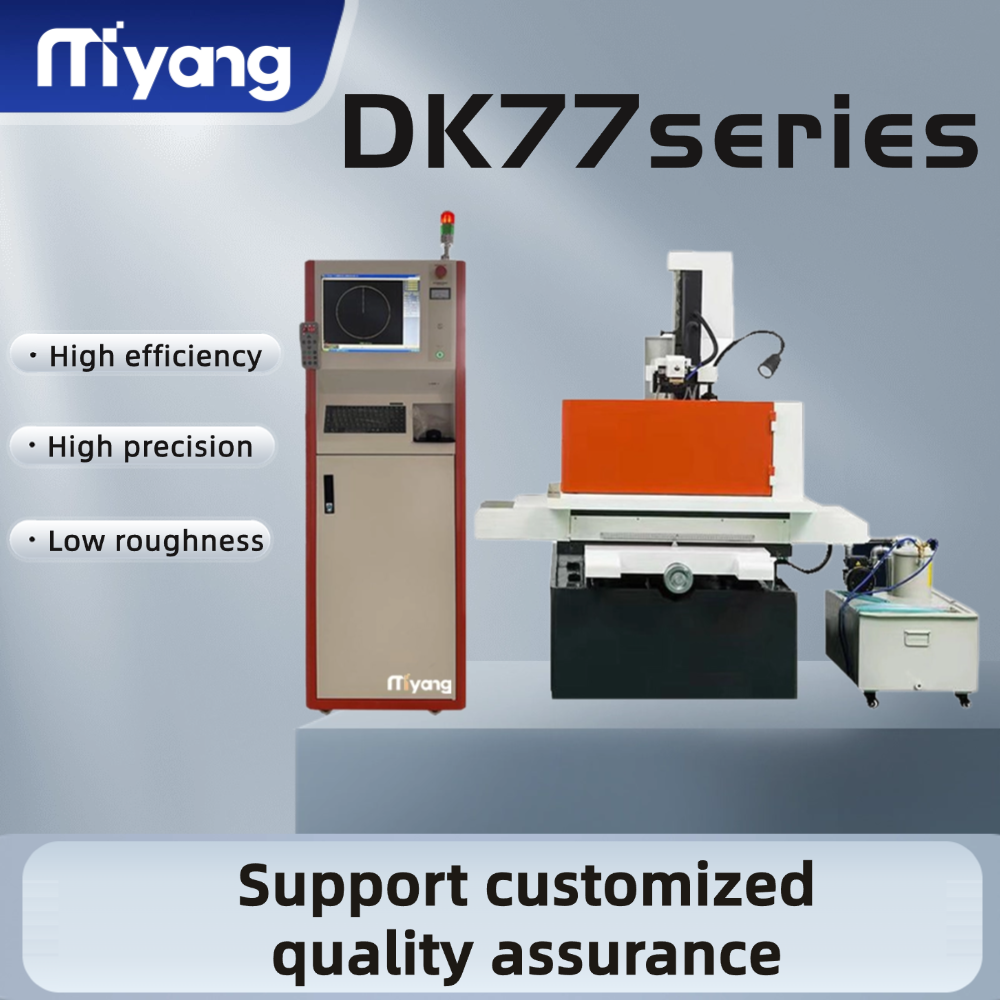

DK7735 wire edm cut machine

1.High precision: high cutting accuracy, low surface roughness, ≤0.01mm, Ra≤0.8um

2.Wide processing range: not limited by material hardness, suitable for processing various conductive or semi-conductive materials.
It can process high-hardness materials such as cemented carbide and hardened steel, as well as various complex contour shapes.

3.High efficiency and low loss: fast cutting speed, low loss of molybdenum wire.

4.Automatic control: Autocut control system is used.

5.Applicable industries: precision mold manufacturing, precision parts, widely used in high-precision parts manufacturing in automotive,
aerospace, electronic products and other fields.

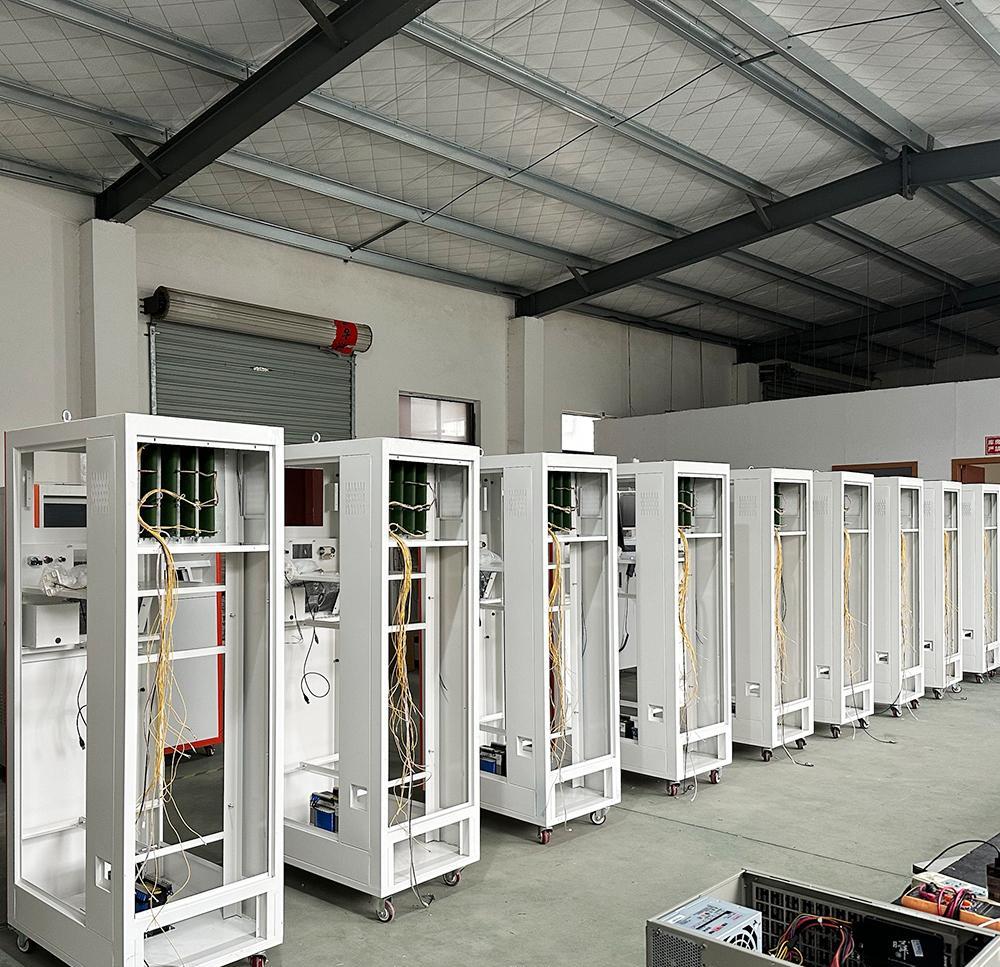

Production Workshop

DK7735(DK7732) High speed Molybdenum Wire EDM Machine Parameter Table

Item	Unit	DK7725 DK7725-S	DK7735 DK7735-S
Worktable size	mm	480*300	610*470
CNC axis travel(X×Y)	mm	320*250	450*350
U/V travel	mm	30	30
Max. cutting workpiece thickness	mm	250	400
Max cutting taper		±6°/80mm	±6°/80mm
Max workpiece weight	kg	250	400
Molybdenum wire diameter	mm	φ0.18	φ0.18
Cutting accuracy	mm	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)
Surface roughness	μm	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)
Cutting efficiency	mm2/hr	8000-15000	8000-15000
Power consumption		≤2Kw AC 3-phase 220V	≤2Kw AC 2-phase 220V
Machine dimension	mm	142011001200	155012001700
Machine weight	kg	≈900	≈1200
Motor Controller		Stepper motor/ Servo motor	Stepper motor/ Servo motor
Z axis lift type		Auto-lift	Auto-lift
Controlled axis		4-axises	4-axises
Guide type		Linear guide	Linear guide
Control system		Autocut	Autocut
Tanker	L	100	100
Filter type		2nd filtration	2nd filtration
Min. Moving unit	mm	0.001	0.001
Molybdenum wire tensioning device		√	√
Table waterproof cover		√	√
DRO		√	√

photobank (3).jpg

photobank (4).jpg

FAQ

Question: Are you a manufacturer or a distributor?

Answer: We are manufacturers. Welcome to visit our factory.

Question: How to choose the machine I want?

Answer: First of all, please match the worktable stroke and cutting thickness according to the size of the workpiece to find the appropriate model.

Secondly, please check whether the accuracy and roughness meet your requirements;Our MY-G series machines have higher precision and better surface finish.

Question: The voltage in our country is three-phase 220V (or single-phase 220V, or other voltages), and the voltage of the machine
is three-phase 380V. Can you change the voltage?

Answer: Yes. Please tell me the voltage you need and we will change it.

Question: If I purchase your machine, how can I obtain technical support?

Answer: We have detailed teaching videos. Even beginners can operate by watching the videos. Please search "Miyang Machine" on
Facebook. Watch more videos!

Question: How is the after-sales service?

Answer: Damaged parts will be replaced free of charge during the warranty period. After the warranty period, they will be replaced
at cost price. If you have any questions, we will quickly provide you with solutions by shooting videos or other means
