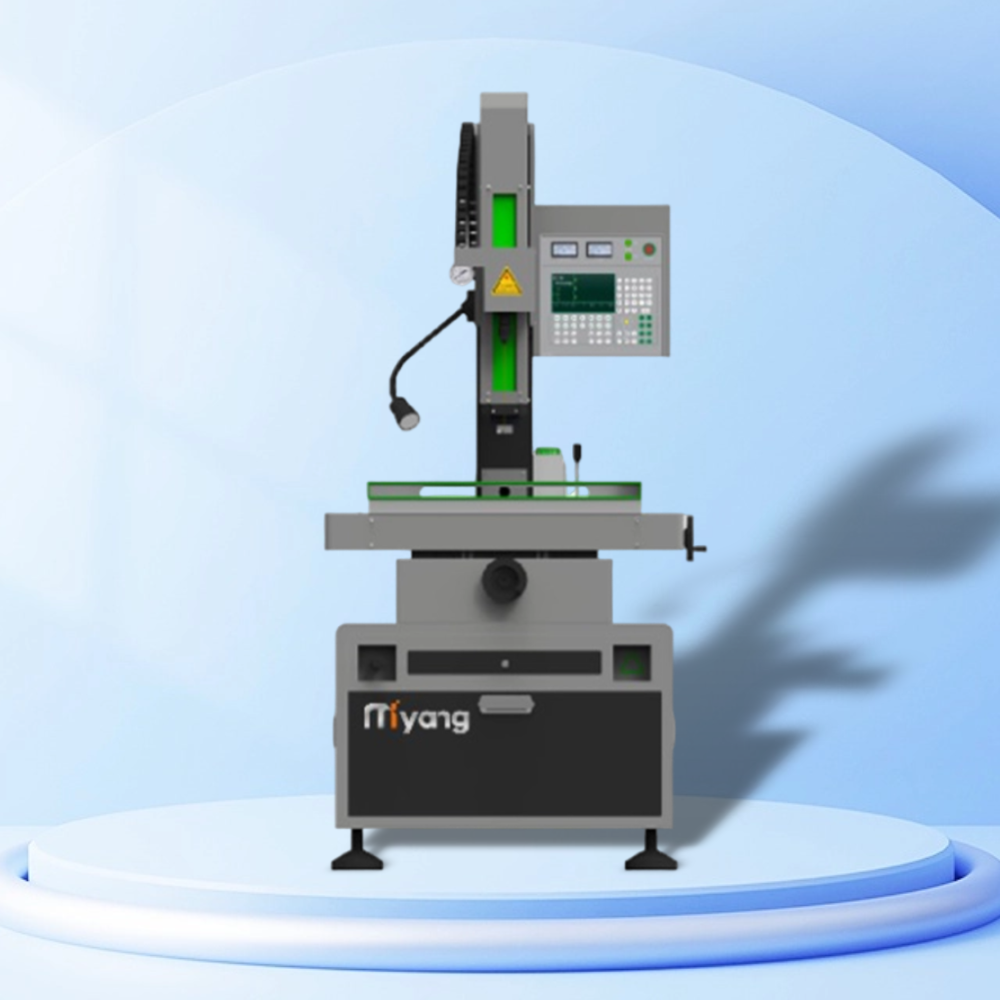

DD703-ZNC

Item	Unit	DD703-400	DD703-450
X/Y Stroke	mm	*400300**	*450350**
Machining aperture	mm	φ0.3~3.0	φ0.15~3.0
Machine Dimensions	mm	*110011002100*	*120012002200*
Machine weight	kg	650	750
Machine tool load	kg	300	360
Spindle servo stroke	mm	390	390
2nd stroke	mm	300	300
Workpiece Height	L	300	300
Max. spindle speed	rpm	1200	2000
Max. output power	KW	4.2	4.5
Max. processing current	A	30	30
Max. Operating Pressure	MPa	7	8
guide rail		Line rail	Line rail
Box material		Steel structure	Steel structure
System		V3	V5
Lead screw		Ball lead screw	Precision ball screw
Motor		Hybrid motor	Hybrid motor
Rotary head material		Tungsten steel rotary pump	Tungsten steel rotary pump
Water pump		Ceramic plunger pump	High pressure ceramic plunger pump
Water tank		30L float device	30L float device
Director		*Y12420.5/1.0**	*Y12420.5/1.0**
Chuck		Wrench chuck	Precision self-lockingcollet
Copper pipe size		φ0.5/1.0 500mm	φ0.5/1.0 500mm
Display method		Liquid crystal three-axis digital display	Liquid crystal three-axis digital display
One-click processing		√	√
Automatic knife lift		√	√
Depth function		√	√
W-axis electric lift		√	√
Automatic voltage		√	√
Multi-level voltage		×	√
Electrode repair		√	√
Material datasheet		√	√
High frequency soft start		×	√
PWM nanosencond modulation		×	×
Limit auto. Detection		√	√
Auto. Parameter stroage		√	√
Power off auto. Memory		√	√
Penetration detection device		×	×
Water circulation system		×	×

Question: Are you a manufacturer or a distributor?

Answer: We are manufacturers. Welcome to visit our factory.

Question: How to choose the machine I want?

Answer: First of all, please match the worktable stroke and cutting thickness according to the size of the workpiece to find the appropriate model. Secondly please check whether the accuracy and roughness meet your requirements.

Question: The voltage in our country is three-phase 220V (or single-phase 220V, or other voltages), and the voltage of the machine is three-phase 380V. Can you change the voltage?

Answer: Yes. Please tell me the voltage you need and we will change it.

Question: If I purchase your machine, how can I obtain technical support?

Answer: We have detailed teaching videos. Even beginners can operate by watching the videos. Please search "Miyang Machine" on Facebook. Watch more videos!

Question: How is the after-sales service?

Answer: Damaged parts will be replaced free of charge during the warranty period. After the warranty period, they will be replaced at cost price. If you have any questions we will quickly provide you with solutions by shooting videos or other means.

Prev：没有了！
Next：没有了！

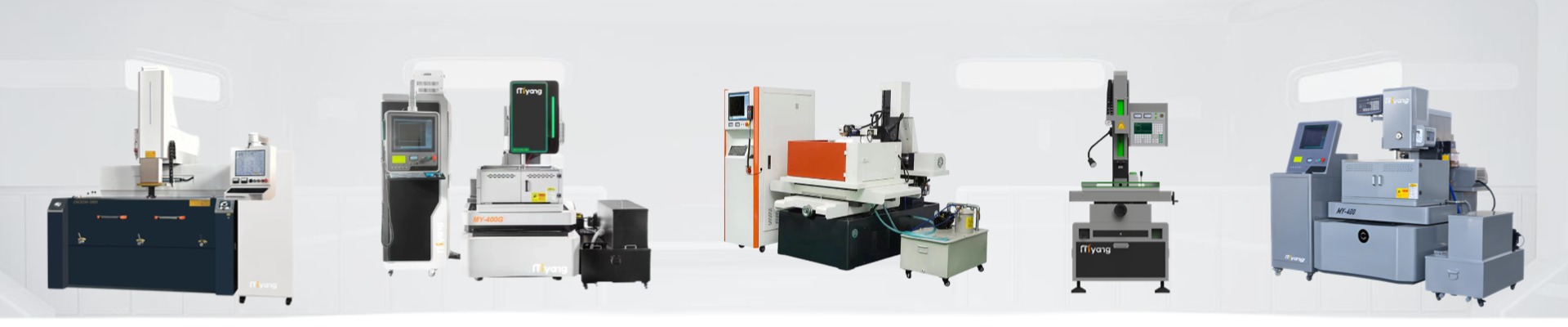

Production and manufacturing equipment Wire EDM machine, EDM forming machine, etc
