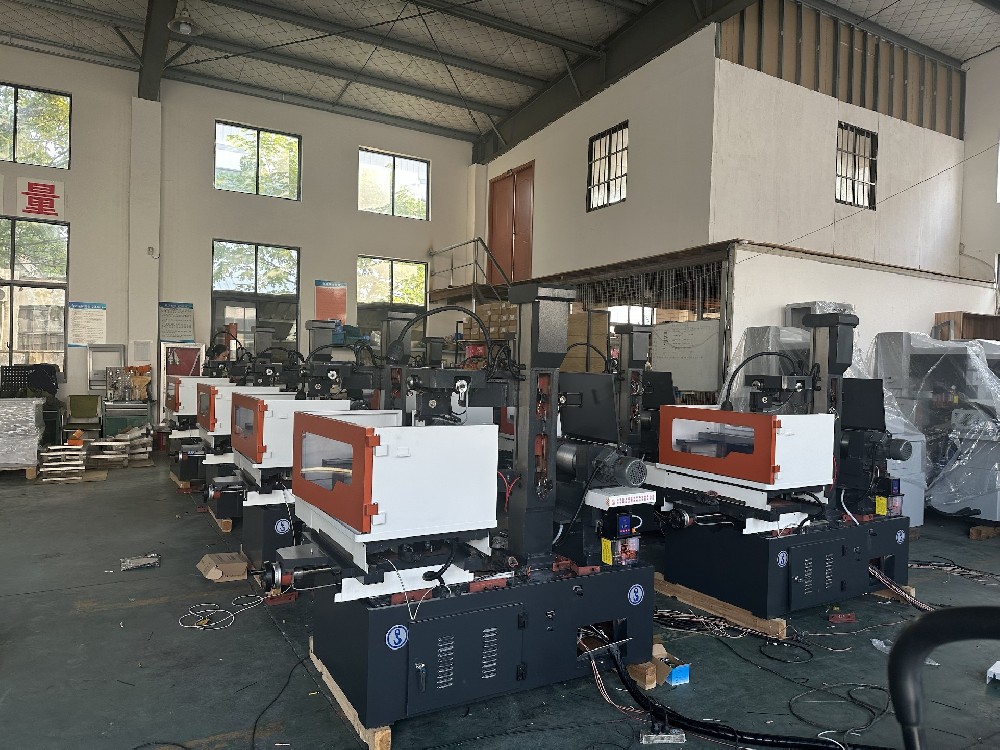

10 Set wirecut EDM machine Ready to ship

2025-11-18 Click amount:24

1. The system adopts advanced pulse power and anti-electrolysis power technology to improve the dimension accuracy and cutting accuracy.

2. The cast of machine body adopt the resin-sand technology with twice high temperature heat treatment to prevent deformation.

3. high precision linear guideway and ball screw.

4. XY Adopt servo

5.Adopt the mainstream system of Autocut ,Support multiple cuts.

Item	Unit	DK7725 DK7725-S	DK7735 DK7735-S	DK7745 DK7745-S	DK7745F DK7745F-S	DK7750 DK7750-S	DK7750F DK7750F-S	DK7763 DK7763-S
Worktable size	mm	480*300	610*470	710*570	750*570	800*650	950*650	950*750
CNC axis travel(X×Y)	mm	320*250	450*350	550*450	650*450	630*500	800*500	800*630
U/V travel	mm	30	30	30	30	30	30	30
Max. cutting workpiece thickness	mm	250	400	450	450	500	500	600
Max cutting taper		±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm	±6°/80mm
Max workpiece weight	kg	250	400	500	500	700	700	1200
Molybdenum wire diameter	mm	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18	φ0.18
Cutting accuracy	mm	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)	≤0.01(φ20mm,H=40mm)
Surface roughness	μm	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)	Ra≤1.2-2.0(multiple cutting)
Cutting efficiency	mm2/hr	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000	8000-15000
Power consumption		≤2Kw AC 3-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V	≤2Kw AC 2-phase 220V
Machine dimension	mm	142011001200	155012001700	180014801700	180016201700	210017601900	210019001900	225022501950
Machine weight	kg	≈900	≈1200	≈1400	≈1400	≈1700	≈1700	≈1900
Motor Controller		Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor	Stepper motor/ Servo motor
Z axis lift type		Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift	Auto-lift
Controlled axis		4-axises	4-axises	4-axises	4-axises	4-axises	4-axises	4-axises
Guide type		Linear guide	Linear guide	Linear guide	Linear guide	Linear guide	Linear guide	Linear guide
Control system		Autocut	Autocut	Autocut	Autocut	Autocut	Autocut	Autocut
Tanker	L	100	100	100	100	100	100	100
Filter type		2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration	2nd filtration
Min. Moving unit	mm	0.001	0.001	0.001	0.001	0.001	0.001	0.001
Molybdenum wire tensioning device		√	√	√	√	√	√	√
Table waterproof cover		√	√	√	√	√	√	√
DRO		√	√	√	√	√	√	√
